Posts tagged #laser

Walnut Audi badge for Pro Clip iPhone mount

I couldn't stand looking at the "ProClipUSA.com" bubble sticker on my new iPhone mount so I quickly made this badge to match up with the walnut interior trim. Should I make more?

Posted on May 28, 2014 and filed under Laser.

A little paragliding nerd time

I've decided to finally finish a "salable" design for my laser cut paraglider. I'm working on the final cut files now and finishing up the little design details. Here's part of it... a pilot! This is version 3, Getting the balance correct through trial and error.

balance

balance

I want them to have actual paragliding line and luckily I have a ton of that. Making line rigs and tying hundreds of knots should be fun!

Posted on March 4, 2014 and filed under Laser.

Walnut veneer for iPhone backs

I decided to do some walnut iPhone backs for friends after my successful etching of my own etimoe iPhone back from Monolith

I ordered some .03" walnut veneer with sticky back from Inventables. I'm sure not the cheapest but they are fast and reliable quality wise so just for a couple of test sheets... they'll do.

After a few test cuts and engraving it's looking like it cuts nicely at Speed 90 Power 60 and engraves well at 1000 DPI at Speed 100 Power 30.


It looks nice with just some mineral oil/beeswax finish but I've also ordered some OSMO Polyx Hard Wax Oil, which is ridiculously expensive but I've been told is worth it by Monolith.

I'd love to hear if anyone has other sources for veneer with adhesive back!

The dimensions for all Apple mobile products are available on their developer page btw.

Posted on February 19, 2014 and filed under Laser.

Materials update etc...

Just a quicky update. I just added a couple of things to the Materials Database... which is still behind.  I replaced my tube 9/21/13, quite a while ago, and have been going full on since. Wow I haven't updated in a long time eh?! The tube upgrade went smooth, just followed the directions from FSL and it worked great first try. So good to have full power again. I've been researching a bit on getting a higher wattage tube from another supplier but haven't committed to anything yet. I'm going to upgrade once this tube starts to die. I participated in Craft Lake City last year and sold a bit over $1000 in jewelry and learned a lot... like that I never want to do craft fairs for a full time job, though I think I could do so and be successful at it. It's very stressful and the hours are super long. Having to shill your product all day and repeat yourself over and over just isn't my cup of tea. So as soon as the show was over I go my website rolling, SKIVVIES.COM. The name is a long story and probably not the best choice for a laser cut jewelry store, but I've had it for years and it was my nickname and screen name for so long that I couldn't think of anything else. So far business goes up and down with how much I'm willing to advertise. I know if I put more effort into it I'd do much better.

I've made a few new objects which hopefully I'll get around to updating soon. I'll do my best to update more often!

Posted on January 13, 2014 and filed under Laser.

A Major Award, and bracelet production notes

I won! I entered my bracelets in the Full Spectrum Laser monthly free laser tube contest for June and I won... so I get a free laser tube. You can see the entire entry with photos of my setup and notes on production on flickr or click any of the thumbs below. This is awesome, because my tube is losing power. I have to cut about 10-20% slower and at 10-20% higher power to get through 1/8" 3 ply than I did when the tube was fresh. Not so good since I'm in production for Craft Lake City which starts on August 9th. Yikes. I hope I get the tube soon but I'm scared to switch out a working one for an unknown. We'll see.

I've only got about 21 bracelets about a third of the way through production, and I hope to at least double that by the fair. I need more time in my life for this. Ugh. I have lots of earrings and jewelry stands to cut too. I also need to get a website and business cards done. Yay for crunch time.

Scallop v1Unfinished Big Box v1, 3 sizesFirst finished prototypespre-finishing "Big Box" v2Super Flex wide prefinishingLots and lots of failed prototypes
The laser cut jig for forming the bendsMagnet and clasp tests.Lots of magnetsThe workbenchThe office.The Laser venting
Posted on July 29, 2013 and filed under Laser.

Masking update

I've been doing a bunch of cutting on the 1/8" birch from WoodCraft for a design I'm perfecting, and after trying the plastic masking film someone recommended, I decided that paper film would be better. Well lo and behold a friend just happened to have two large 12" rolls of paper transfer tape for transferring sticky-back nylon laying around his shop that I happened across. It's labeled Masking Angel Tape. It's the same cream color as standard masking tape and has a medium tack I'd guess. I tried it out today and while it masked the char well, it also left behind a nasty residue from the burnt glue at the edges which doesn't come off easily. So... strike two. Plain old blue painters tape has been working the best by a long shot, so I picked up a 3-inch roll and will be using that from now on. Stick with what works. I've seen on some 3D printer groups (they use it to print on) that they bulk order it in larger rolls ... 6 inches or more... so that might be the way to go for larger cuts in the future.

I've updated the materials database with the above mentioned birch... and have some 1/8" bamboo ply on the way from Inventables.com. Not cheap at $8.56 per square foot plus shipping, but I used the $20 gift card that came with the laser to buy it, so we'll see if it's worth the money. It can be had for cheaper in much larger sheets.

Posted on March 31, 2013 and filed under Laser.

Flexible Wood and clasps

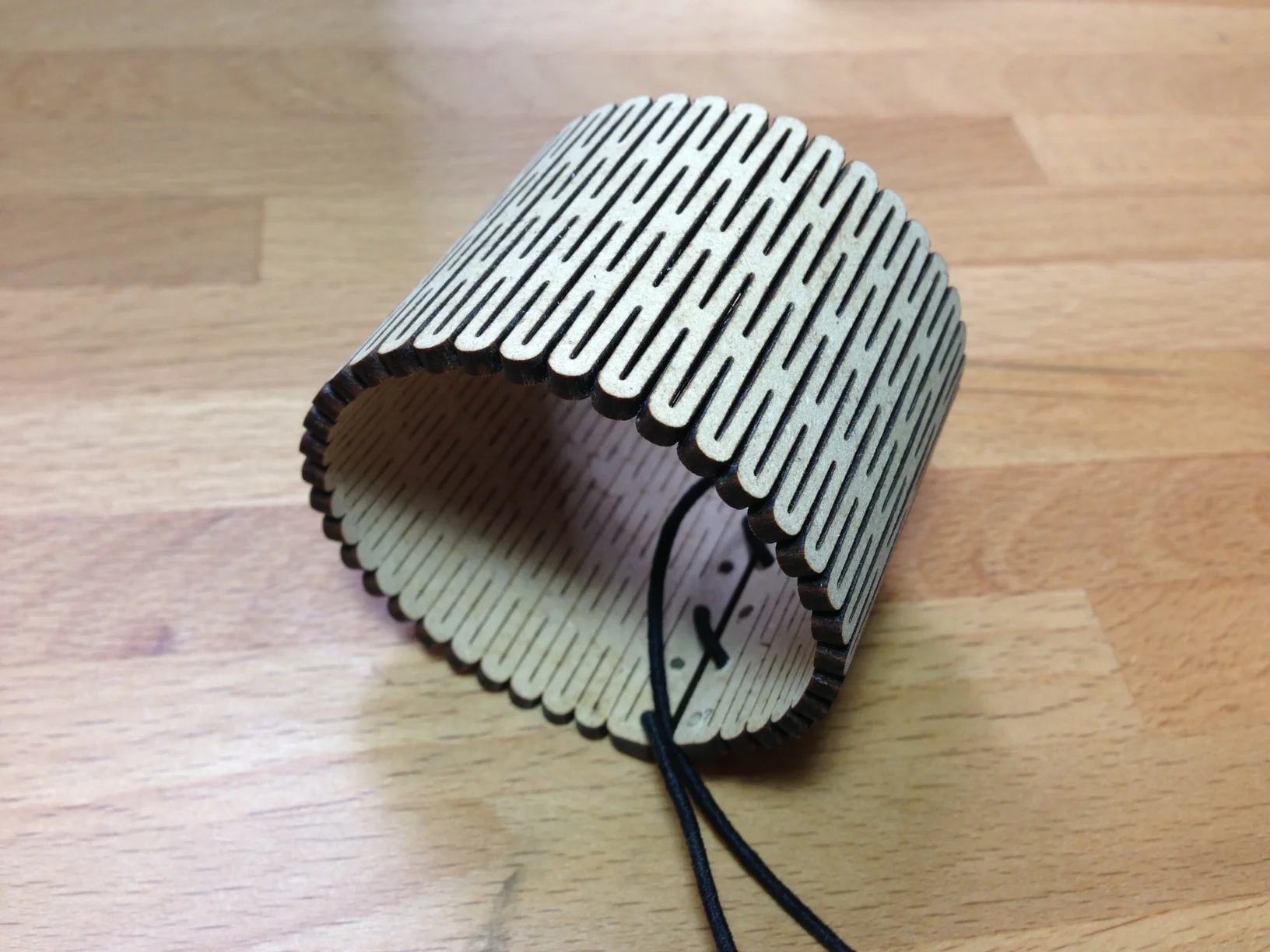

Based on a number of designs on Thingiverse (here's one, another, and another) using the flexible hinge cut, I decided to make some bracelets. It appears this hinging design was created by Snij Lab in the Netherlands. Pretty ingenious and I can't wait to try some other patterns when I get a second. So I opened up illustrator and went at it. The design is nice and modular and easy to scale. Using 1/8" MDF board I cut at Power 82 Speed 30 masked with blue painters tape and the first bracelet came out perfectly. I wet it lightly and clamped it with some binder clips overnight while it dried and it now stays in form pretty well. I need to get some thinner more stretchy shock cord so it will slide on easily. I'll experiment with finishes and other woods very soon. Also need to try out some angled patterns for the cuts.

Sweet! It works. I was curious if I could come up with a more interesting clasping mechanism... so I thought I'd try and use rastering to cut half way through the wood and make a locking join. I ran a bunch of tests on the edge of the wood to see what powers would cut half way through. I settled on Power 80 Speed 20 with two passes in Raster mode. I rastered one side, then cut it, then flipped it over and rastered the other side using the sheet it was cut from as a jig which worked perfectly. I'll need to tune the tolerances as I had to do some exacto knife clean up, but it appears to work pretty well. The small pieces on the outside are too fragile as I'd expected, so I'll have to redesign it a bit. Not sure if this is viable for many uses but I'll play with it more on an actual bracelet and see.

Posted on March 22, 2013 and filed under Laser.

Masking no go

I tried the masking film I ordered from SignWarehouse on the 1/4" Birch Plywood and it mostly doesn't work. It's not tacky enough and as it melts it peels back away from the cut so the board still gets charred. It works where it sticks it just doesn't stick around the entire edge. Bummer... that was a waste of cash. Will have to find something else. [UPDATE] After a quick search on SawMillCreek forums I realized ordering plastic film as a mask was one of the least brilliant purchases I've made in a while. Don't know why I didn't think about it... I saw someone else recommend it on Thingiverse and just blindly ordered. Turns out plastic melts! Shocker. I've tried masking with blue painters tape before and it worked great. So now I need to source some PAPER transfer tape... or just buy a bunch of 3" blue painters tape. Hmm.

Posted on March 21, 2013 and filed under Laser.

Birch Plywood Testing and 3D Engraving

Quickly, here's some results from 1/4" x 2 ft. x 4 ft. Birch Project Panel Plywood that I picked up at Home Depot. It's got Birch veneer with "whitewood" core, which you can see in the first photo. Second photo is of the cut and raster tests. After that I ran a quick 3D Raster Engrave test. For cutting with 1 pass, it looks like Power 50 Speed 14 or so works well. Rasters are also nice.

RetinaEngrave 3D Raster Engraving

FSL's software is very good overall, but the newer 3D Raster Engrave function still feels like a bit of a hack. Instead of varying the laser power for each pixel, it has to do multiple passes at a single power. I'm not sure if other lasers have the aforementioned capability to engrave with one pass or if they all work this way. That said, it works pretty well.

You have to Print a grayscale image to RetinaEngrave, then click the 3D Raster tab or select if from the Tabs menu if it's not visible. Then you set the Raster Power and Speed settings and the number of "frames" you want (every frame is one pass of the raster engrave), then click "Auto Generate Frames." You can also create each frame manually if desired. After creating the frames you can go back in and edit their power, speed, and threshold individually. Creating frames basically slices the grayscale image and generates a Z-depth layer for each value of gray. The more frames you create, the greater your Z-depth resolution and the more passes the laser will take. So based on the original grayscale image, in final output to the cut material, a white pixel will get no engraving, a 50% gray pixel will get engraved to half of full depth, and a black pixel will get engraved at full depth. What that depth is depends on your power and speed settings, and how many frames/passes you do. Once you have the frames generated, each frame is a black and white representation of a Z-depth layer. So with every pass, black pixels will fire the laser and will get cut another layer deeper, white will not. Hope that makes sense. It's much clearer when looking at the software.

The first try was the large box in the upper left of the "TEST" Image above. It was 2.5" and was set at 500x500dpi with 10 passes. After the second pass I got impatient and realized I could test an image a quarter that size at half the resolution, and that I needed more power. Rastering takes forever! At that size and resolution, it's doing 1250 passes on the Y axis per layer/frame. So I went back to photoshop and quartered the size, reimported and upped the power to 40 per layer and the resolution to 250x250dpi. I kept it at 10 frames. That resulted in what you see below. Not bad, and I can imagine more frames would come out even nicer. I didn't record the time it took but it wasn't fast to say the least.

Pretty cool feature and I have some interesting ideas of what to do with it when time allows. It's going to take some experimentation.
